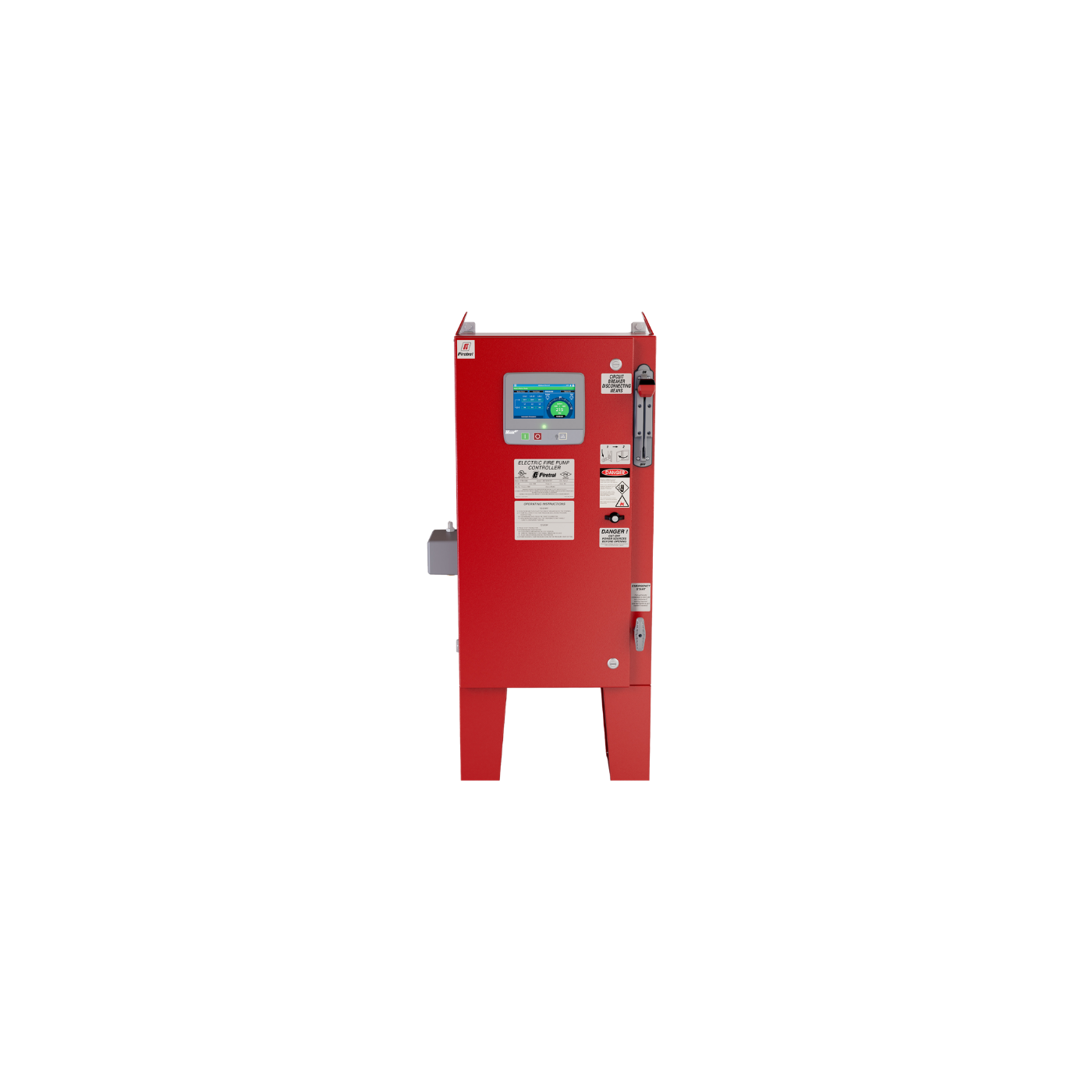

FTA1000 (MarkIII+)

Firetrol FTA1000 Full Voltage Fire Pump Controllers are intended for use with electric motor driven fire pumps where the capacity of the power source permits full voltage starting. Full voltage is applied to the motor as soon as the controller is actuated. The controller monitors, displays and records fire pump system information.Full voltage starting is simple and low cost and is preferred whenever the utility or emergency generator set will permit this type of starting.

Specification

Controller Type

Electric Fire Pump Controller

Starting Method

Full Voltage (Across-the-Line) Starting

Motor Type

Electric Fire Pump Motor

Operation

Manual & Automatic

Operating Temperature

4°C to 40°C (39°F to 104°F)

Standards

NFPA 20, NFPA 70

Certifications

UL218, cUL, CE, FM Approved, City of New York Approved

Enclosure

NEMA Type 2 (IEC IP22), Drip-proof, Wall Mounted

Operator Interface

7" Color Capacitive Touchscreen HMI

Display Functions

Voltage, Current, System Pressure, Pump Status, Date & Time

Pressure Units

PSI, kPa, Bar, Feet of Head, Meters of Water

Pressure Sensor

Solid-State Pressure Transducer (0–500 psi, calibrated 0–300 psi)

Wet Parts Connection

1/2" FNPT

Event Logging

Pressure & Event History with Time/Date Stamp

USB Port

USB Flash Drive Data Export

Communication

Modbus TCP/IP (RJ45)

Control Functions

Minimum Run Timer, Sequential Start Timer, Periodic Test Timer

Manual Controls

Start, Stop & Test Push Buttons

Alarm Functions

Locked Rotor, Fail to Start, Phase Loss, Over/Under Voltage, Motor Trouble, Pump Room Alarm

Manufacturer

Firetrol
