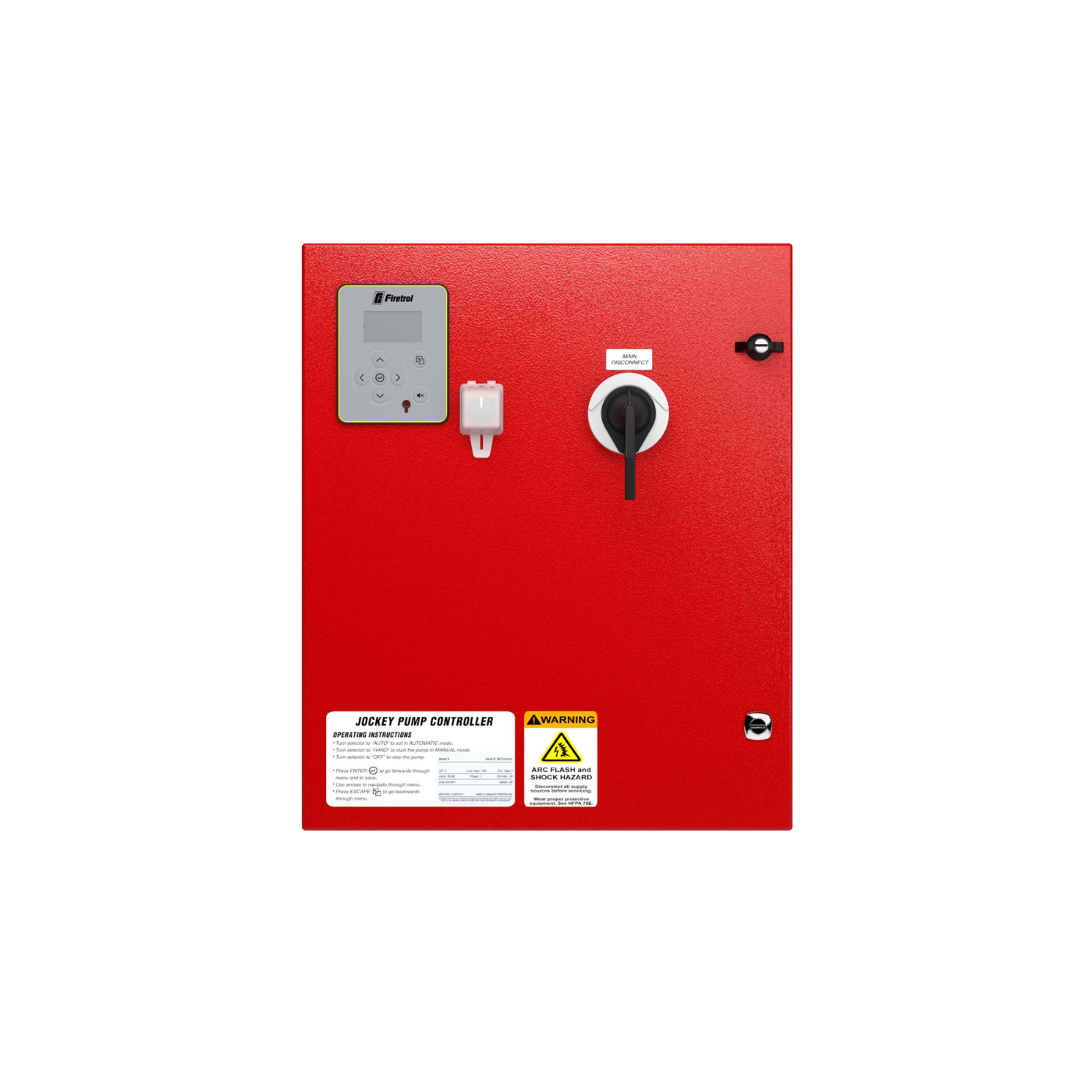

FTA570E Jockey Pump Controller

Firetrol FTA570E Jockey Pump Controllers are intended for use with fire pump systems. They are used for pressure maintenance in fire pump installations to prevent unnecessary operation of the main fire pump.

Specification

Controller Type

Jockey Pump Controller

Starting Method

Full Voltage Starting

Operation

Automatic

Standards

NFPA 70

Certifications

UL508A, cUL

Enclosure

NEMA Type 2 (IEC IP22), Painted Steel

Short Circuit Rating

65kA @ 480V, 5kA @ 600V, 65kA @ 240V

Pressure Sensor

Solid-State Pressure Transducer

Pressure Range

0–600 psi (0–42 bar)

Pressure Accuracy

±1 psi

Operator Interface

4-Digit Digital Display with User Keypad

Controls

Hand-Off-Auto Selector Switch

Audible Alarm

Included

Programmable Functions

Start/Stop Pressure, Timer, Units

Timer Functions

Sequential Start & Minimum Run Timer

Manufacturer

Firetrol
