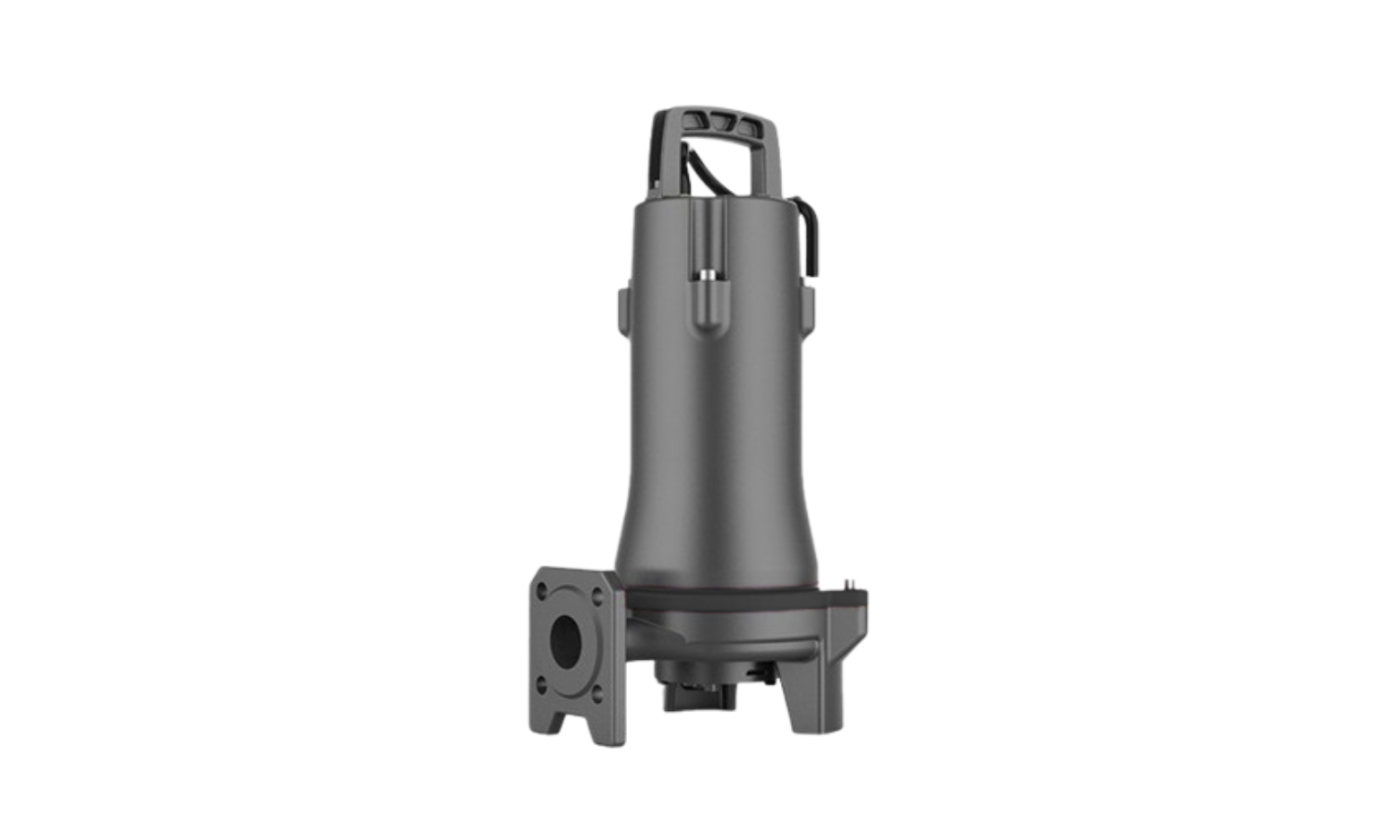

The Phantom Armor® Submersible Pump is designed for continuous submerged operation in clean water, drainage, wastewater, and industrial pumping applications. Its compact construction allows installation directly in the liquid source, eliminating suction limitations while providing stable hydraulic performance. Built for durability and easy maintenance, the pump is suitable for commercial, municipal, and industrial environments requiring dependable water transfer.

Specification

Pump Type

Submersible Non-Clog Centrifugal Wastewater Pump

Installation

Fully Submerged (Vertical Installation)

Motor Type

Submersible Electric Motor

Cooling

Water Cooled

Impeller Type

Vortex or Single / Double Channel Non-Clog Impeller

Solid Handling

Up to 50–80 mm (Model Dependent)

Pump Construction

Heavy-Duty Cast Iron (FC250) / Ductile Iron (FCD)

Shaft Material

Stainless Steel AISI 404 / 420

Seal Type

Double Mechanical Seal (Silicon Carbide) in Oil Chamber

Protection Rating

IP68

Insulation Class

Class F

Control Panel

DOL or Star-Delta Control Panel

Operation Mode

Manual / OFF / Auto

Level Control

Float Switch or Water Level Controller (Electrode Stick)

Protection Features

Thermal Overload Relay (TOR), Phase Failure & Reverse Relay

Power Supply

Electric

Applications

WWTP, STP, Basement Drainage, Stormwater Pumping, Industrial Wastewater, Commercial Facilities
